X-Band Transportable Polarimetric Weather Radar

METRAD is a new X-Band weather radar with high sensitivity and a wide dynamic range. These features allow the METRAD to detect even the weakest hydro-meteorological targets such as drizzle or light snow.

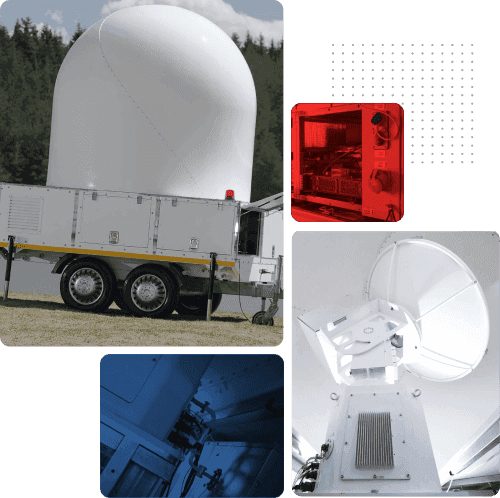

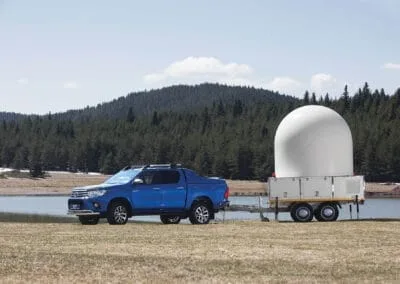

The compact size and portability of the X-Band system make it an excellent choice for both quick fixed installation and rapid deployment to the operation site.

HIGH – RESOLUTION FOR

Precise Measurement

The system meets a wide range of needs such as instant forecasting, flood and hail warnings, scientific research and coverage of geographically blind areas by detecting situations that C Band radars cannot detect, thanks to the use of full caliber and dual-polarization STAR (Simultaneous Transmit and Receive) topology, which is the most advanced 16-bit signal processing unit and the use of meteorological radar algorithms optimized in X Band.

In this context, METRAD offers excellent weather measurement capability at short and medium ranges. The system has the capacity to operate 24/7 unaccompanied and remotely.

The system can optionally be operated in a stand-alone or network-based configuration. In addition, the collected data can be transferred to the desired center/centers via a 4G modem or SATCOM terminal.

Fastest Way to Obtain

Meteorological Data

When using METRAD as a Terminal Doppler Weather Radar at both civil and military airports; it possible to detect not only hydro-meteorological targets but also microbursts or gust fronts in rainy weather with the optional Wind Products Software Package.

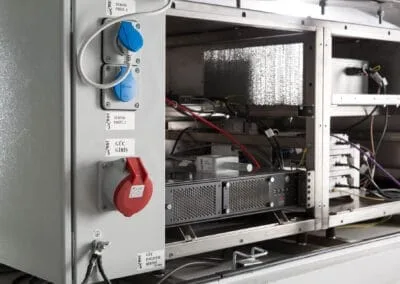

METRAD has been designed in the LRU concept in order to enable the user or maintenance personnel to easily access the defective equipment and quickly replace the broken parts with active parts.

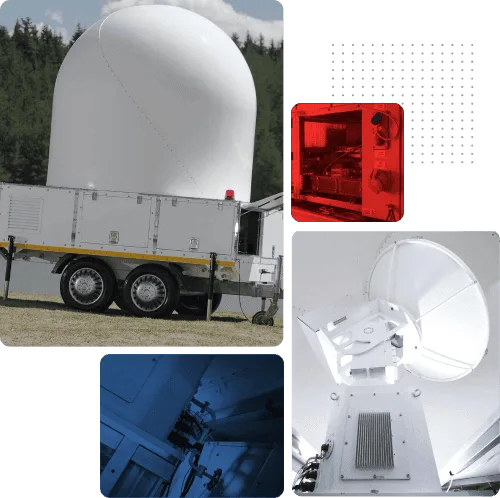

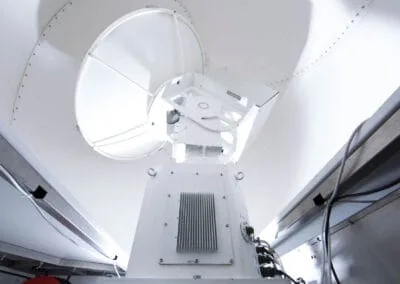

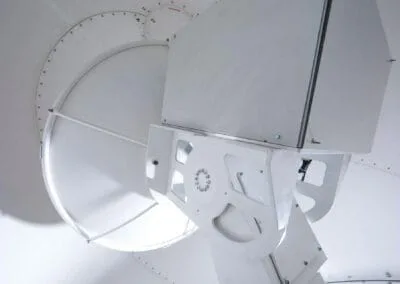

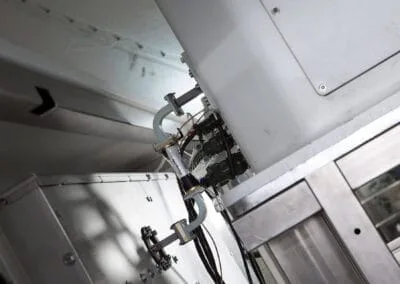

The inverted U-shaped radome is optimized for producing minimal cross-polarization and differential phase value at all angles at polarimetric applications. Also, the pedestal makes full hemispherical coverage and very precise antenna positioning possible.
METRAD

Technical Specifications

TRANSMITTER
Type Long-Lifetime Magnetron with solid-state modulator (dynamically calibrated for optimum ZDR performance in STAR Mode)
Peak Power 20 KW (Supports up to 50 KW)
RECEIVER
Type Multiple-Channel Superheterodyne Receiver (dynamically calibrated in both amplitude and phase)
Noise Figure  < 2.5 dB
Dynamic Range   > 90 dB
Sensitivity  < -111 dBm
DIGITAL RECEIVER & SIGNAL PROCESSOR
Type Modular multi-channel receiver
IF Sampling  2 parallel channels, 16-bit per polarization
Processing Mode  Multi-lag autocorrelation with pulse-pair or FFT
ANTENNA & PEDESTAL
Antenna Diameter 1.5 m (Supports up to 1.8 m))
Antenna Gain  41 dBi
Antenna Beamwidth  1.5°
Antenna Coverage  360° continuous in azimuth, -2° – +90° in elevation
Positioning Accuracy  0.1°
Angular Speed  Up to 6 RPM
DIMENSIONS & WEIGHT OF SYSTEM ON TRAILER
Width 255 cm
Length  300 cm
Height  380 cm
Weight  Less than 2500 kg
Technical Specifications
Frequency 9325 MHz
Pulse Repetition Frequency (PRF)  0.2 – 3 KHz (Selectable)
Pulse Width (PW)  0.33 µs-4 µs (Selectable)
Operational Range  >75 km
DATA OUTPUT
  • Reflectivity (Z)
  • Radial Velocity (V)
  • Spectral Width (W)
  • Differential Reflectivity (ZDR)
  • Differential Phase Shift (ɸDP)
  • Specific Differential Phase Shift (KDP)
  • Polarimetric Correlation Coefficient (ρHV)
  • Signal Quality Index (SQI)

Clutter corrected and uncorrected versions are available for all above parameters.

Meteorological Products
  • PPI : Plan Position IndicatoR
  • RHI : Range Height Indicator
  • CAPPI : Constant Altitude Plan Position Indicator
  • PCAPPI : Pseudo Constant Altitude Plan Position Indicator
  • MAX : Maximum Display
  • ETOPS : Echo Top Height
  • EBASE : Echo Base Height
  • VAD : Velocity Azimuth Display
  • VVP : Vertical Wind Profile
  • SRI : Surface Rainfall Intensity
  • VIL : Vertically Integrated Liquid
  • RSHEAR : Radial Shear
  • ASHEAR : Azimuthal Shear
  • ESHEAR : Elevation Shear
  • HCI : Hydro Meteor Classification

Both vertical and horizontal versions available
